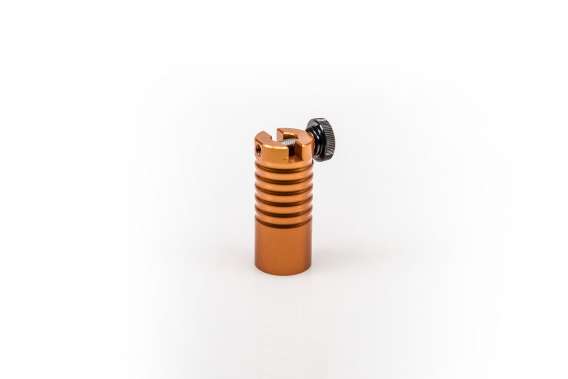

MODULAR HEADSPACE / BULLET COMPARATOR BODIES

DIAL CALIPER BODY FOR YOUR MODULAR HEADSPACE COMPARATOR ASSEMBLY.  NOW AVAILABLE WITH 2 MOUNTING CONFIGURATIONS: “CENTERED” FOR NORMAL USE, “OFFSET” FOR USE WITH HORNADY® COAL TOOLS.

AVAILABLE IN TWO CONFIGURATIONS

Long: The longest of the two configurations, works with loaded ammunition up to 338 Lapua Magnum with solid turned bullets.

Short: The shortest body of the two configurations. More compact when the customer wants to dedicate a body for measuring fired brass or bullets only.

Made from 6061 Aluminum. These bodies clamp onto your dial / digital calibers allowing the Headspace and Bullet inserts to be changed quickly without the use of any tools. Both Standard and Short Modular Headspace Comparator Bodies have two clamping configurations when mounting to your dial calipers.

CONFIGURATION “C”: CENTERED

With the 10/32 Thumb Screw mounted on the bottom side with a “C” means that the Modular Headspace Comparator Body will be centered on the dial calipers. This is standard for all normal uses.

CONFIGURATION “O”: OFFSET

With the 10/32 Thumb Screw mounted on the bottom side with a “O” means that the Modular Headspace Comparator Body will be offset on the dial calipers. When using the Hornady COAL measuring tools, the Modular Headspace Comparator body must be offset on the dial calipers in order for the Hornady tool to be properly aligned with the Modular Headspace Comparator assembly.
