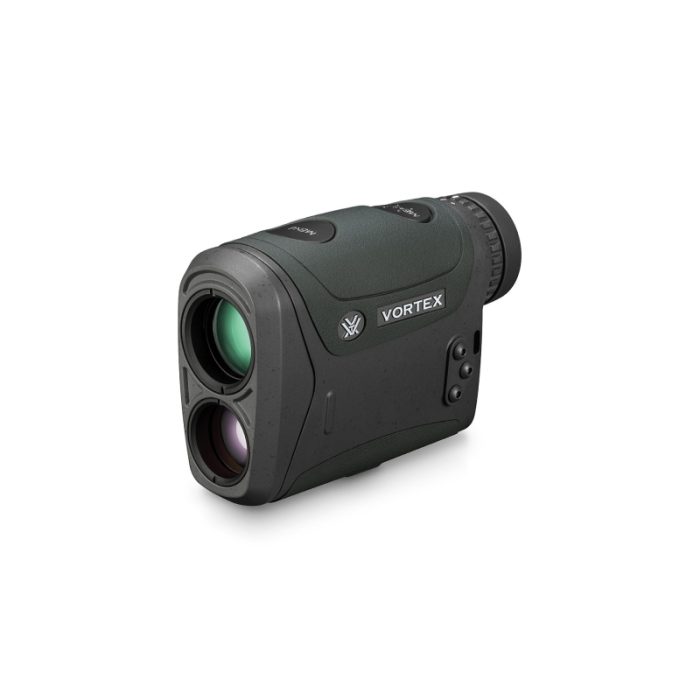

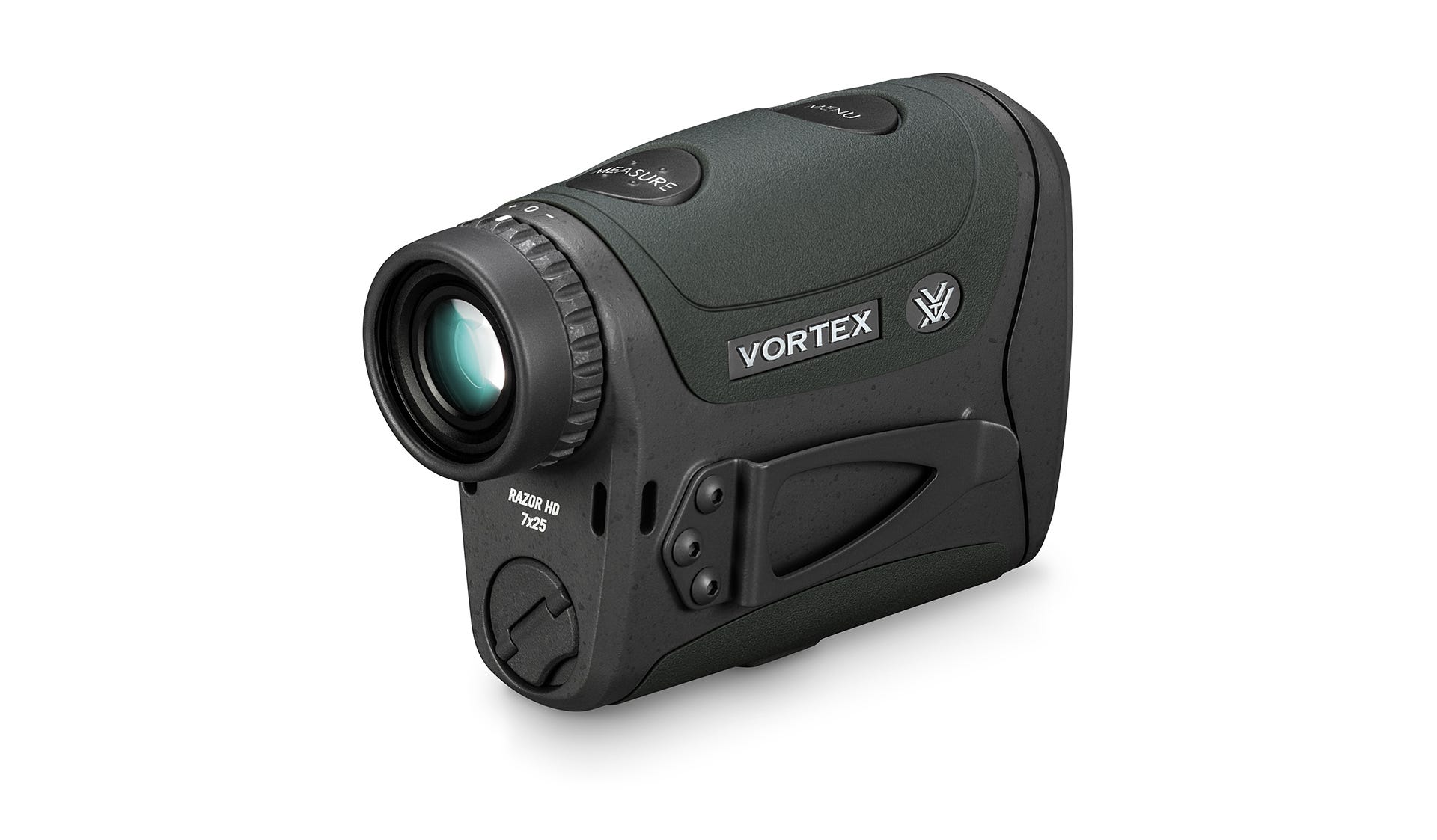

he Razor HD 4000 is the essential companion for the extreme hunter, archer and shooter. The extremely effective angle compensated laser rangefinder features four targeting modes (Normal Mode, First Mode, Last Mode and Extended Laser Range Mode) for any ranging environment. The primary HCD (Horizontal Component Distance) range mode provides key angle compensated range information required by the vast majority of shooters in a simple, quick to read display. The Razor HD 4000 also has a LOS (Line of Sight) range mode and scan feature.
| DEER RANGE | TREE RANGE | REFLECTIVE RANGE | |
| NORMAL MODE | 1,600 yds (1,463 m) | 1,800 yds (1,646 m) | 2,400 yds (2,194 m) |
| NORMAL MODE (SCAN) | 2,000 yds (1,829 m) | 2,200 yds (2,012 m) | 2,400 yds (2,194 m) |
| ELR MODE | 2,200 yds (2,012 m) | 2,500 yds (2,286 m) | 4,000 yds (3,658 m) |
Included in the Box
- Carrying case
- Lens cloth
- Hex wrench
- CR2 battery
Range Reflective (yards) 4000
Range Tree (yards) 2500
Range Deer (yards) 2200
Accuracy (≤ 199.9 yds) .5 yds
Accuracy (200 – 1000 yds) 1 yds
Accuracy (> 1000 yds) 2 yds
Max Angle Reading + / – 70 degrees
Magnification 7x
Objective Lens Diameter 25 mm
Linear Field of View 341.25 ft @ 1,000 yds
Angular Field of View 6.5 degrees
Eye Relief 16-19 mm
Length 4.49 inches
Width 1.34 inches
Weight 9.9 oz
Product Manual (PDF) Download
Parts Diagram (PDF) Download
